P系列-1602
發(fā)布日期:2024-01-16 瀏覽次數(shù):653

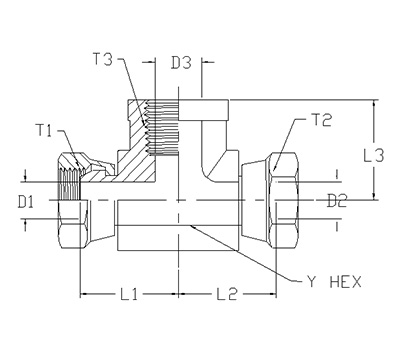

ITEM | P/N | Y HEX | T1 | T2 | T3 | L1 | L2 | L3 | D1 | D2 | D3 |
1 | 1602-02-02-02-FG | 0.562 | 1/8-27 NPSM | 1/8-27 NPSM | 1/8-27 NPTF | 0.800 | 0.800 | 0.660 | 0.110 | 0.110 | 0.315 |
2 | 1602-04-04-04-FG | 0.750 | 1/4-18 NPSM | 1/4-18 NPSM | 1/4-18 NPTF | 0.990 | 0.990 | 0.880 | 0.210 | 0.210 | 0.390 |
3 | 1602-06-06-06-FG | 0.875 | 3/8-18 NPSM | 3/8-18 NPSM | 3/8-18 NPTF | 1.060 | 1.060 | 1.020 | 0.320 | 0.320 | 0.531 |
4 | 1602-06-06-08-FG | 1.062 | 3/8-18 NPSM | 3/8-18 NPSM | 1/2-14 NPTF | 1.170 | 1.170 | 1.230 | 0.320 | 0.320 | 0.649 |
5 | 1602-08-08-08-FG | 1.062 | 1/2-14 NPSM | 1/2-14 NPSM | 1/2-14 NPTF | 1.240 | 1.240 | 1.230 | 0.440 | 0.440 | 0.649 |
6 | 1602-08-08-12-FG | 1.312 | 1/2-14 NPSM | 1/2-14 NPSM | 3/4-14 NPTF | 1.500 | 1.500 | 1.360 | 0.440 | 0.440 | 0.854 |
