P系列-1501

發(fā)布日期：2024-01-16 瀏覽次數(shù)：551

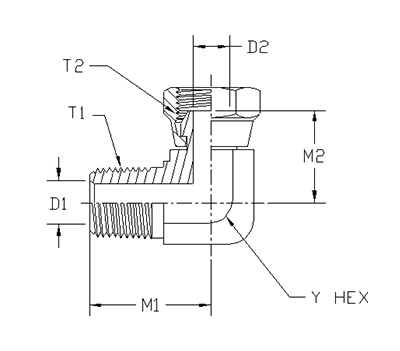

ITEM	P/N	Y HEX	T1	T2	M1	M2	D1	D2
1	1501-02-02-FG	0.483	1/8-27 NPTF	1/8-27 NPSM	0.720	0.700	0.188	0.110
2	1501-02-04-FG	0.562	1/8-27 NPTF	1/4-18 NPSM	0.900	0.880	0.188	0.210
3	1501-04-02-FG	0.562	1/4-18 NPTF	1/8-27 NPSM	1.090	0.770	0.281	0.110
4	1501-04-04-FG	0.562	1/4-18 NPTF	1/4-18 NPSM	1.090	0.880	0.281	0.210
5	1501-04-06-FG	0.75	1/4-18 NPTF	3/8-18 NPSM	1.220	0.990	0.281	0.320
6	1501-04-08-FG	0.875	1/4-18 NPTF	1/2-14 NPSM	1.280	1.110	0.281	0.440
7	1501-06-04-FG	0.75	3/8-18 NPTF	1/4-18 NPSM	1.220	1.160	0.406	0.210
8	1501-06-06-FG	0.75	3/8-18 NPTF	3/8-18 NPSM	1.220	0.990	0.406	0.320
9	1501-06-08-FG	0.875	3/8-18 NPTF	1/2-14 NPSM	1.280	1.110	0.406	0.440
10	1501-08-04-FG	0.875	1/2-14 NPTF	1/4-18 NPSM	1.470	1.020	0.531	0.210
11	1501-08-06-FG	0.875	1/2-14 NPTF	3/8-18 NPSM	1.470	1.040	0.531	0.320
12	1501-08-08-FG	0.875	1/2-14 NPTF	1/2-14 NPSM	1.470	1.110	0.531	0.440
13	1501-08-12-FG	1.062	1/2-14 NPTF	3/4-14 NPSM	1.590	1.300	0.531	0.610
14	1501-12-06-FG	1.062	3/4-14 NPTF	3/8-18 NPSM	1.590	1.260	0.719	0.320
15	1501-12-08-FG	1.062	3/4-14 NPTF	1/2-14 NPSM	1.590	1.330	0.719	0.440
16	1501-12-12-FG	1.062	3/4-14 NPTF	3/4-14 NPSM	1.590	1.300	0.719	0.610
17	1501-12-16-FG	1.312	3/4-14 NPTF	1-11-1/2 NPSM	1.780	1.540	0.719	0.780
18	1501-16-12-FG	1.312	1-11-1/2 NPTF	3/4-14 NPSM	1.970	1.400	0.938	0.610
19	1501-16-16-FG	1.312	1-11-1/2 NPTF	1-11-1/2 NPSM	1.970	1.540	0.938	0.780
20	1501-16-20-FG	1.625	1-11-1/2 NPTF	1-1/4-11-1/2 NPSM	2.350	1.730	0.938	1.010
21	1501-20-16-FG	1.625	1-1/4-11-1/2 NPTF	1-11-1/2 NPSM	2.380	1.700	1.250	0.780
22	1501-20-20-FG	1.625	1-1/4-11-1/2 NPTF	1-1/4-11-1/2 NPSM	2.380	1.730	1.250	1.010
23	1501-24-20-FG	1.875	1-1/2-11-1/2 NPTF	1-1/4-11-1/2 NPSM	2.640	1.770	1.500	1.010
24	1501-24-24-FG	1.875	1-1/2-11-1/2 NPTF	1-1/2-11-1/2 NPSM	2.640	1.890	1.500	1.250
25	1501-32-32-FG	2.500	2-11-1/2 NPTF	2-11-1/2 NPSM	3.00	2.690	1.938	1.720
