F系列-FS2605

發(fā)布日期：2024-01-12 瀏覽次數(shù)：635


Unit: inch

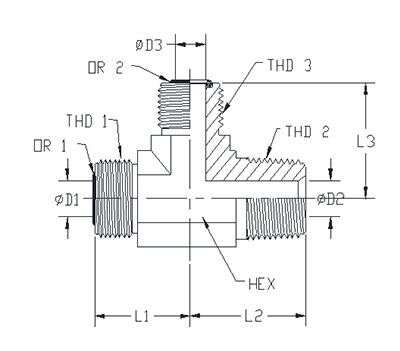

ITEM P/N HEX THD 1 THD 2 THD 3 L1 L2 L3 D1 D2 D3 OR 1 OR 2
1 FS2605-04-02-04-FG 0.562 9/16-18 UNF 1/8-27 NPTF 9/16-18 UNF 0.85 0.80 0.85 0.172 0.188 0.172 OG-04 OG-04
2 FS2605-04-04-04-FG 0.562 9/16-18 UNF 1/4-18 NPTF 9/16-18 UNF 0.85 1.12 0.85 0.172 0.281 0.172 OG-04 OG-04
3 FS2605-06-04-06-FG 0.750 11/16-16 UNF 1/4-18 NPTF 11/16-16 UNF 0.98 1.22 0.98 0.264 0.281 0.264 OG-06 OG-06
4 FS2605-06-06-06-FG 0.750 11/16-16 UNF 3/8-16 NPTF 11/16-16 UNF 0.98 1.22 0.98 0.264 0.406 0.264 OG-06 OG-06
5 FS2605-08-06-08-FG 0.750 13/16-16 UNF 3/8-16 NPTF 13/16-16 UNF 1.10 1.22 1.10 0.378 0.406 0.378 OG-08 OG-08
6 FS2605-08-08-08-FG 0.875 13/16-16 UNF 1/2-14 NPTF 13/16-16 UNF 1.10 1.47 1.10 0.378 0.531 0.378 OG-08 OG-08
7 FS2605-10-08-10-FG 1.062 1-14 UNS 1/2-14 NPTF 1-14 UNS 1.31 1.47 1.31 0.484 0.531 0.484 OG-10 OG-10
8 FS2605-12-12-12-FG 1.188 1-3/16-12 UN 3/4-14 NPTF 1-3/16-12 UN 1.47 1.59 1.47 0.609 0.719 0.609 OG-12 OG-12
9 FS2605-16-12-16-FG 1.438 1-7/16-12 UN 3/4-14 NPTF 1-7/16-12 UN 1.64 1.78 1.64 0.811 0.719 0.811 OG-16 OG-16
10 FS2605-16-16-16-FG 1.438 1-7/16-12 UN 1-11.5 NPTF 1-7/16-12 UN 1.64 1.97 1.64 0.811 0.938 0.811 OG-16 OG-16
11 FS2605-20-20-20-FG 1.625 1-11/16-12 UN 1 1/4-11.5 NPTF 1-11/16-12 UN 1.76 2.38 1.76 1.024 1.250 1.024 OG-20 OG-20
