F系列-FS0304-C
發(fā)布日期：2024-01-12 瀏覽次數(shù)：560

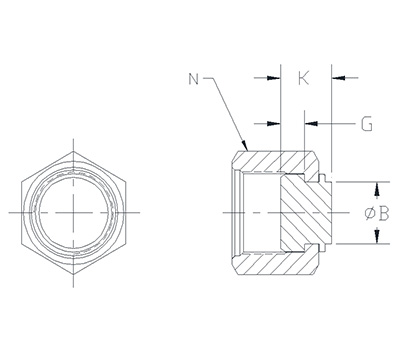

| Unit: inch | |||||
| Item | P/N | N | K | G | B |
| 1 | FS0304-C-04 | FS0318-04 | 0.34 | 0.157 | 0.402 |
| 2 | FS0304-C-06 | FS0318-06 | 0.37 | 0.177 | 0.522 |
| 3 | FS0304-C-08 | FS0318-08 | 0.47 | 0.197 | 0.642 |
| 4 | FS0304-C-10 | FS0318-10 | 0.47 | 0.236 | 0.817 |
| 5 | FS0304-C-12 | FS0318-12 | 0.53 | 0.256 | 0.936 |
| 6 | FS0304-C-16 | FS0318-16 | 0.59 | 0.276 | 1.130 |
| 7 | FS0304-C-20 | FS0318-20 | 0.59 | 0.276 | 1.401 |
| 8 | FS0304-C-24 | FS0318-24 | 0.59 | 0.276 | 1.714 |
