E系列-C2408
發(fā)布日期：2024-01-09 瀏覽次數(shù)：629

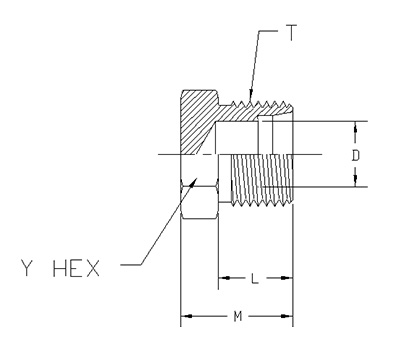

| ITEM | P/N | Y HEX | T | D |
| 1 | C'2408-02 | 0.438 | 5/16-24 UNF. | 0.093 |
| 2 | C'2408-03 | 0.438 | 3/8-24 UNF | 0.125 |
| 3 | C'2408-04 | 0.500 | 7/16-20 UNF | 0.203 |
| 4 | C'2408-05 | 0.562 | 1/2-20 UNF | 0.234 |
| 5 | C'2408-06 | 0.625 | 9/16-18 UNF | 0.281 |
| 6 | C'2408-08 | 0.813 | 3/4-16 UNF | 0.422 |
| 7 | C'2408-10 | 0.938 | 7/8-14 UNF | 0.500 |
| 8 | C'2408-12 | 1.125 | 1-1/16-12 UN | 0.656 |
| 9 | C'2408-14 | 1.25 | 1-3/16-12 UN | 0.719 |
| 10 | C'2408-16 | 1.375 | 1-5/16-12 UN | 0.875 |
| 11 | C'2408-20 | 1.688 | 1-5/8-12 UN | 1.093 |
| 12 | C'2408-24 | 2.000 | 1-7/8-12 UN | 1.344 |
| 13 | C'2408-32 | 2.625 | 2-1/2-12 UN | 1.813 |
