B系列-60-6022
發(fā)布日期:2024-01-09 瀏覽次數(shù):633

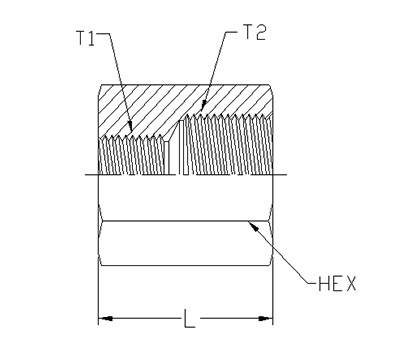

ITEM | P/N | T1 | T2 | L | HEX |
1 | 6022-02-02 | G1/8-28 | G1/8-28 | 22 | 14 |
2 | 6022-04-02 | G1/4-19 | G1/8-28 | 25 | 19 |
3 | 6022-04-04 | G1/4-19 | G1/4-19 | 25 | 19 |
4 | 6022-04-06 | G1/4-19 | G3/8-19 | 28.5 | 22 |
5 | 6022-04-08 | G1/4-19 | G1/2-14 | 32 | 27 |
6 | 6022-06-06 | G3/8-19 | G3/8-19 | 28.5 | 22 |
7 | 6022-06-08 | G3/8-19 | G1/2-14 | 32 | 27 |
8 | 6022-08-08 | G1/2-14 | G1/2-14 | 32 | 27 |
9 | 6022-08-12 | G1/2-14 | G3/4-14 | 32 | 32 |
10 | 6022/12/12 | G3/4-14 | G3/4-14 | 43 | 32 |
11 | 6022/12/16 | G3/4-14 | G1-11 | 51 | 41 |
12 | 6022-16-16 | G1-11 | G1-11 | 51 | 41 |
13 | 6022-20-20 | G1-1/4-11 | G1-1/4-11 | 55 | 50 |
14 | 6022-24-24 | G1-1/2-11 | G1-1/2-11 | 55 | 55 |
15 | 6022-32-32 | G2-11 | G2-11 | 70 | 70 |
