B系列-60-3004
發(fā)布日期：2024-01-09 瀏覽次數(shù)：625

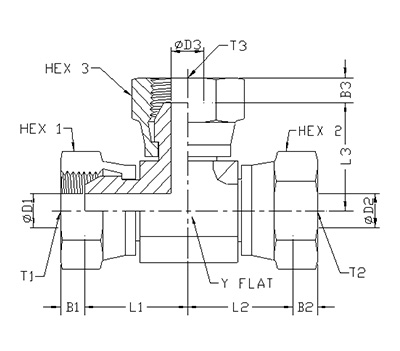

| ITEM | P/N | T1 | T2 | T3 | L1 | L2 | L3 | D1 | D2 | D3 | B | HEX1 | HEX2 | HEX3 | Y FLATS |
| 1 | 3004-02-02-02 | G1/8-28 | G1/8-28 | G1/8-28 | 16.0 | 16.0 | 16.0 | 3.5 | 3.5 | 3.5 | 5.4 | 14.0 | 14.0 | 14.0 | 11.1 |
| 2 | 3004-04-04-04 | G1/4-19 | G1/4-19 | G1/4-19 | 22.0 | 22.0 | 22.0 | 4.5 | 4.5 | 4.5 | 4.2 | 19.0 | 19.0 | 19.0 | 17.0 |
| 3 | 3004-06-06-06 | G3/8-19 | G3/8-19 | G3/8-19 | 24.0 | 24.0 | 24.0 | 7.0 | 7.0 | 7.0 | 6.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| 4 | 3004-08-08-08 | G1/2-14 | G1/2-14 | G1/2-14 | 28.5 | 28.5 | 28.5 | 9.0 | 9.0 | 9.0 | 6.5 | 27.0 | 27.0 | 27.0 | 24.0 |
| 5 | 3004-12-12-12 | G3/4-14 | G3/4-14 | G3/4-14 | 33.0 | 33.0 | 33.0 | 14.5 | 14.5 | 14.5 | 8.7 | 32.0 | 32.0 | 32.0 | 27.0 |
| 6 | 3004-16-16-16 | G1-11 | G1-11 | G1-11 | 35.5 | 35.5 | 35.5 | 20.0 | 20.0 | 20.0 | 10.5 | 41.0 | 41.0 | 41.0 | 33.3 |
| 7 | 3004-20-20-20 | G1 1/4-11 | G1 1/4-11 | G1 1/4-11 | 46.0 | 46.0 | 46.0 | 26.0 | 26.0 | 26.0 | 10.1 | 50 | 50 | 50 | 41.3 |
| 8 | 3004-24-24-24 | G1 1/2-11 | G1 1/2-11 | G1 1/2-11 | 51.0 | 51.0 | 51.0 | 30.0 | 30.0 | 30.0 | 12.5 | 55 | 55 | 55 | 47.6 |
