B系列-60-3002
發(fā)布日期：2024-01-09 瀏覽次數(shù)：614

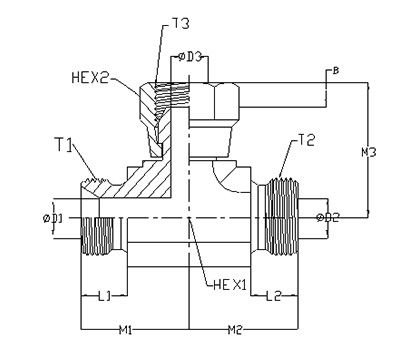

| ITEM | P/N | T1 | T2 | T2 | M1 | M2 | M3 | L1 | L2 | B | D1 | D2 | D3 | HEX | Y FLATS |
| 1 | 3002-02-02-02 | G1/8-28 | G1/8-28 | G1/8-28 | 20.0 | 20.0 | 22.5 | 8.0 | 8.0 | 5.4 | 3.5 | 3.5 | 3.5 | 14 | 17 |
| 2 | 3002-04-04-04 | G1/4-19 | G1/4-19 | G1/4-19 | 26.9 | 26.9 | 26.2 | 11.0 | 11.0 | 4.2 | 4.0 | 4.0 | 4.0 | 19.0 | 17 |
| 3 | 3002-06-06-06 | G3/8-19 | G3/8-19 | G3/8-19 | 30.0 | 30.0 | 34.0 | 12.0 | 12.0 | 6.0 | 7.0 | 7.0 | 7.0 | 22.0 | 22 |
| 4 | 3002-08-08-08 | G1/2-14 | G1/2-14 | G1/2-14 | 30.0 | 30.0 | 37.5 | 14.0 | 14.0 | 6.5 | 9.0 | 9.0 | 9.0 | 27.0 | 24 |
| 5 | 3002-12-12-12 | G3/4-14 | G3/4-14 | G3/4-14 | 42.8 | 42.8 | 44.7 | 16.0 | 16.0 | 8.7 | 14.5 | 14.5 | 14.5 | 32.0 | 32 |
| 6 | 3002-16-16-16 | G1-11 | G1-11 | G1-11 | 46.0 | 46.0 | 49.0 | 19.0 | 19.0 | 10.5 | 20.0 | 20.0 | 20.0 | 41.0 | 41 |
| 7 | 3002-20-20-20 | G1 1/4-11 | G1 1/4-11 | G1 1/4-11 | 50.0 | 50.0 | 59.5 | 20.0 | 20.0 | 10.1 | 26.0 | 26.0 | 26.0 | 50.0 | 50 |
| 8 | 3002-24-24-24 | G1 1/2-11 | G1 1/2-11 | G1 1/2-11 | 55.0 | 55.0 | 69.5 | 22.0 | 22.0 | 12.5 | 30.0 | 30.0 | 30.0 | 55.0 | 55 |
