B系列-60-2006-BS
發(fā)布日期：2024-01-09 瀏覽次數(shù)：521

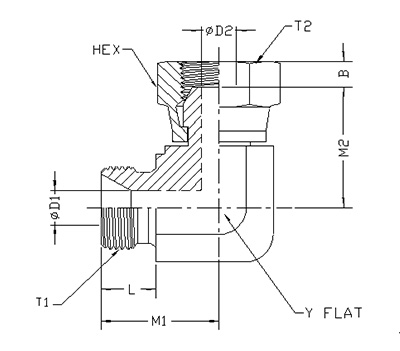

| ITEM | P/N | T1 | T2 | M1 | M2 | L | B | D1 | D2 | HEX | Y FLATS |
| 1 | 2006-02-02-BS | G1/8-28 | G1/8-28 | 20.0 | 19.1 | 8.0 | 5.4 | 3.5 | 3.5 | 14.0 | 17 |
| 2 | 2006-04-04-BS | G1/4-19 | G1/4-19 | 26.9 | 22.0 | 11.0 | 4.2 | 6.0 | 4.5 | 19.0 | 17 |
| 3 | 2006-06-06-BS | G3/8-19 | G3/8-19 | 30.0 | 28.0 | 12.0 | 6.0 | 7.0 | 7.0 | 22.0 | 22 |
| 4 | 2006-08-08-BS | G1/2-14 | G1/2-14 | 30.0 | 31.0 | 14.0 | 6.5 | 9.0 | 9.0 | 27.0 | 24 |
| 5 | 2006-12-12-BS | G3/4-14 | G3/4-14 | 42.8 | 36.0 | 16.0 | 8.7 | 14.5 | 14.5 | 32.0 | 32 |
| 6 | 2006-16-16-BS | G1-11 | G1-11 | 46.0 | 38.5 | 19.0 | 10.5 | 20.0 | 20.0 | 41.0 | 41 |
