P系列-1405
發(fā)布日期:2023-11-21 瀏覽次數(shù):550

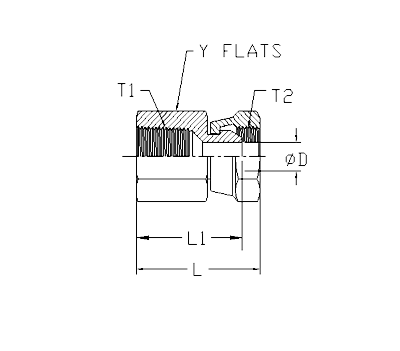

ITEM | P/N | T1 | T2 | L1 | L | D | Y FLATS |
1 | 1405-02-02-FG | 1/8-27 NPTF | 1/8-27 NPSM | 0.89 | 1.03 | 0.156 | 0.563 |
2 | 1405-04-04-FG | 1/4-18 NPTF | 1/4-18 NPSM | 1.21 | 1.40 | 0.219 | 0.688 |
3 | 1405-06-06-FG | 3/8-18 NPTF | 3/8-18 NPSM | 1.31 | 1.52 | 0.344 | 0.875 |
4 | 1405-08-08-FG | 1/2-14 NPTF | 1/2-14 NPSM | 1.53 | 1.81 | 0.469 | 1.000 |
5 | 1405-12-12-FG | 3/4-14 NPTF | 3/4-14 NPSM | 1.52 | 1.87 | 0.641 | 1.250 |
6 | 1405-16-16-FG | 1-11 1/2 NPTF | 1-11 1/2 NPSM | 2.00 | 2.35 | 0.844 | 1.500 |
