BF_FB-FS4110
發(fā)布日期:2024-01-16 瀏覽次數(shù):697
Unit: metric | ||||||||

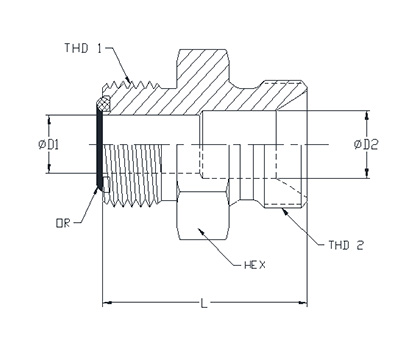

ITEM | P/N | HEX | THD 1 | THD 2 | L | D1 | D2 | OR |
1 | FS4110-04-02 | 15.88 | 9/16-18 UNF | G1/8-28 | 25.80 | 4.40 | 4.40 | OG-04 |
2 | FS4110-04-04 | 19.00 | 9/16-18 UNF | G1/4-19 | 28.80 | 4.40 | 6.00 | OG-04 |
3 | FS4110-04-06 | 22.00 | 9/16-18 UNF | G3/8-19 | 30.50 | 4.40 | 7.90 | OG-04 |
4 | FS4110-06-04 | 19.00 | 11/16-16 UNF | G1/4-19 | 30.90 | 6.70 | 6.00 | OG-06 |
5 | FS4110-06-06 | 22.00 | 11/16-16 UNF | G3/8-19 | 31.90 | 6.70 | 7.90 | OG-06 |
6 | FS4110-06-08 | 27.00 | 11/16-16 UNF | G1/2-14 | 33.90 | 6.70 | 11.10 | OG-06 |
7 | FS4110-06-12 | 32.00 | 11/16-16 UNF | G3/4-14 | 39.45 | 6.70 | 14.50 | OG-06 |
8 | FS4110-08-04 | 22.00 | 11/16-16 UNF | G1/4-19 | 33.60 | 9.60 | 6.00 | OG-08 |
9 | FS4110-08-06 | 22.00 | 11/16-16 UNF | G3/8-19 | 34.60 | 9.60 | 7.90 | OG-08 |
10 | FS4110-08-08 | 27.00 | 11/16-16 UNF | G1/2-14 | 36.60 | 9.60 | 11.10 | OG-08 |
11 | FS4110-08-12 | 32.00 | 11/16-16 UNF | G3/4-14 | 41.05 | 9.60 | 14.50 | OG-08 |
12 | FS4110-10-06 | 27.00 | 1-14 UNS | G3/8-19 | 39.10 | 12.30 | 7.90 | OG-10 |
13 | FS4110-10-08 | 27.00 | 1-14 UNS | G1/2-14 | 41.10 | 12.30 | 11.10 | OG-10 |
14 | FS4110-10-10 | 30.00 | 1-14 UNS | G5/8-14 | 43.75 | 12.30 | 14.30 | OG-10 |
15 | FS4110-10-12 | 32.00 | 1-14 UNS | G3/4-14 | 43.10 | 12.30 | 14.50 | OG-10 |
16 | FS4110-12-08 | 31.75 | 1 3/16-12 UN | G1/2-14 | 44.10 | 15.50 | 11.10 | OG-12 |
17 | FS4110-12-12 | 32.00 | 1 3/16-12 UN | G3/4-14 | 46.10 | 15.50 | 14.50 | OG-12 |
18 | FS4110-12-16 | 41.00 | 1 3/16-12 UN | G1-11 | 49.10 | 15.50 | 20.00 | OG-12 |
19 | FS4110-16-12 | 38.10 | 1 7/16-12 UN | G3/4-14 | 47.80 | 20.60 | 14.50 | OG-16 |
20 | FS4110-16-16 | 41.00 | 1 7/16-12 UN | G1-11 | 50.80 | 20.60 | 20.00 | OG-16 |
21 | FS4110-16-20 | 50.00 | 1 7/16-12 UN | G1 1/4-11 | 57.50 | 20.60 | 28.60 | OG-16 |
22 | FS4110-20-16 | 44.45 | 1 11/16-12 UN | G1-11 | 52.80 | 26.00 | 20.00 | OG-20 |
23 | FS4110-20-20 | 50.00 | 1 11/16-12 UN | G1 1/4-11 | 57.50 | 26.00 | 28.60 | OG-20 |
