P系列-5605
發(fā)布日期：2024-01-16 瀏覽次數(shù)：655

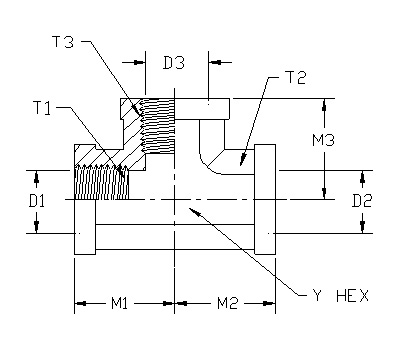

| ITEM | P/N | Y EHX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
| 1 | 5605-02-02-02-FG | 0.562 | 1/8-27NPTF | 0.66 | 0.315 | 1/8-27NPTF | 0.66 | 0.315 | 1/8-27NPTF | 0.66 | 0.315 |
| 2 | 5605-04-04-04-FG | 0.75 | 1/4-18NPTF | 0.88 | 0.39 | 1/4-18NPTF | 0.88 | 0.39 | 1/4-18NPTF | 0.88 | 0.39 |
| 3 | 5605-06-06-06-FG | 0.875 | 3/8-18NPTF | 1.02 | 0.531 | 3/8-18NPTF | 1.02 | 0.531 | 3/8-18NPTF | 1.02 | 0.531 |
| 4 | 5605-08-08-06-FG | 1.062 | 1/2-14NPTF | 1.23 | 0.649 | 1/2-14NPTF | 1.23 | 0.649 | 3/8-18NPTF | 1.01 | 0.531 |
| 5 | 5605-08-08-08-FG | 1.062 | 1/2-14NPTF | 1.23 | 0.649 | 1/2-14NPTF | 1.23 | 0.649 | 1/2-14NPTF | 1.23 | 0.649 |
| 6 | 5605-12-12-12-FG | 1.312 | 3/4-14NPTF | 1.36 | 0.854 | 3/4-14NPTF | 1.36 | 0.854 | 3/4-14NPTF | 1.36 | 0.854 |
| 7 | 5605-16-16-16-FG | 1.625 | 1-11-1/2NPTF | 1.62 | 1.08 | 1-11-1/2NPTF | 1.62 | 1.08 | 1-11-1/2NPTF | 1.62 | 1.08 |
| 8 | 5605-20-20-20-FG | 1.875 | 1-1/4-11-1/2NPTF | 1.7 | 1.421 | 1-1/4-11-1/2NPTF | 1.7 | 1.421 | 1-1/4-11-1/2NPTF | 1.7 | 1.421 |
| 9 | 5605-24-24-24-FG | 2.562 | 1-1/2-11-1/2NPTF | 2.08 | 1.657 | 1-1/2-11-1/2NPTF | 2.08 | 1.657 | 1-1/2-11-1/2NPTF | 2.08 | 1.657 |
