J系列-6806
發(fā)布日期：2024-01-12 瀏覽次數(shù)：749

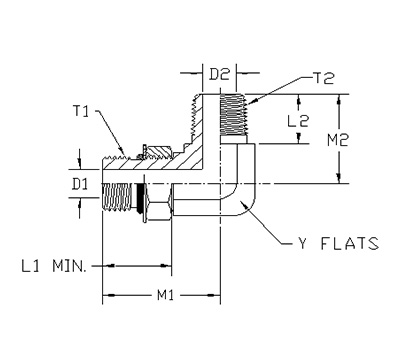

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 1 | 6806-04-02-NW0-FG | 0.438 | 7/16-20UNF | 1.03 | 0.172 | 1/8-27NPTF | 0.78 | 0.188 |
| 2 | 6806-04-04-NW0-FG | 0.562 | 7/16-20UNF | 1.19 | 0.172 | 1/4-18NPTF | 1.09 | 0.281 |
| 3 | 6806-05-02-NOW-FG | 0.562 | 1/2-20UNF | 1.13 | 0.234 | 1/8-27NPTF | 0.78 | 0.188 |
| 4 | 6806-06-04-NW0-FG | 0.562 | 9/16-18UNF | 1.25 | 0.297 | 1/4-18NPTF | 1.09 | 0.281 |
| 5 | 6806-06-06-NW0-FG | 0.75 | 9/16-18UNF | 1.32 | 0.297 | 3/8-18NPTF | 1.22 | 0.406 |
| 6 | 6806-08-06-NW0-FG | 0.75 | 3/4-16UNF | 1.45 | 0.391 | 3/8-18NPTF | 1.22 | 0.406 |
| 7 | 6806-08-08-NW0-FG | 0.875 | 3/4-16UNF | 1.54 | 0.391 | 1/2-14NPTF | 1.47 | 0.531 |
| 8 | 6806-10-08-NW0-FG | 0.875 | 7/8-14UNF | 1.7 | 0.484 | 1/2-14NPTF | 1.47 | 0.531 |
| 9 | 6806-12-12-NW0-FG | 1.062 | 1-1/16-12UN | 1.94 | 0.609 | 3/4-14NPTF | 1.59 | 0.719 |
| 10 | 6806-14-12-NW0-FG | 1.312 | 1-3/16-12UN | 2 | 0.719 | 3/4-14NPTF | 1.69 | 0.719 |
| 11 | 6806-16-12-NW0-FG | 1.312 | 1-5/16-12UN | 2.05 | 0.844 | 3/4-14NPTF | 1.78 | 0.719 |
| 12 | 6806-16-16-NW0-FG | 1.312 | 1-5/16-12UN | 2.05 | 0.844 | 1-11-1/2NPTF | 1.97 | 0.938 |
| 13 | 6806-20-20-NOW-FG | 1.625 | 1-5/8-12UN | 2.25 | 1.078 | 1-1/4-11-1/2 NPTF | 2.38 | 1.25 |
| 14 | 6806-24-24-NW0-FG | 1.875 | 1-7/8-12UN | 2.39 | 1.312 | 1-1/2-11-1/2NPTF | 2.64 | 1.5 |
| 15 | 6806-32-32-NOW-FG | 2.5 | 2-1/2-12UN | 2.89 | 1.781 | 2-11-1/2NPTF | 3 | 1.938 |
