J系列-6801
發(fā)布日期：2024-01-12 瀏覽次數(shù)：760

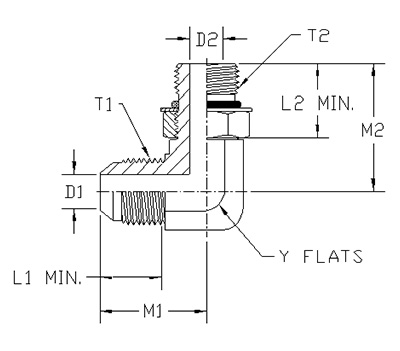

| ITEM | P/N | Y FLATS | T1 | T2 | M1 | M2 | L1 MIN. | L2 MIN. | D1 | D2 |
| 1 | 6801-04-04-NWO-FG | 0.438 | 7/16-20UNF | 7/16-20UNF | 0.890 | 1.030 | 0.535 | 0.73 | 0.172 | 0.172 |
| 2 | 6801-04-06-NWO-FG | 0.562 | 7/16-20UNF | 9/16-18UNF | 1.050 | 1.250 | 0.535 | 0.75 | 0.172 | 0.297 |
| 3 | 6801-05-05-NW0-FG | 0.562 | 1/2-20UNF | 1/2-20UNF | 0.950 | 1.130 | 0.535 | 0.73 | 0.234 | 0.234 |
| 4 | 6801-05-06-NW0-FG | 0.562 | 1/2-20UNF | 9/16-18UNF | 1.050 | 1.250 | 0.535 | 0.75 | 0.234 | 0.297 |
| 5 | 6801-06-04-NWO-FG | 0.562 | 9/16-18UNF | 7/16-20UNF | 1.060 | 1.190 | 0.541 | 0.73 | 0.297 | 0.172 |
| 6 | 6801-06-06-NWO-FG | 0.562 | 9/16-18UNF | 9/16-18UNF | 1.060 | 1.250 | 0.541 | 0.75 | 0.297 | 0.297 |
| 7 | 6801-06-08-NWO-FG | 0.750 | 9/16-18UNF | 3/4-16UNF | 1.140 | 1.450 | 0.541 | 0.86 | 0.297 | 0.391 |
| 8 | 6801-08-06-NWO-FG | 0.750 | 3/4-16UNF | 9/16-18UNF | 1.250 | 1.320 | 0.642 | 0.75 | 0.391 | 0.297 |
| 9 | 6801-08-08-NWO-FG | 0.750 | 3/4-16UNF | 3/4-16UNF | 1.250 | 1.450 | 0.642 | 0.86 | 0.391 | 0.391 |
| 10 | 6801-08-10-NWO-FG | 0.875 | 3/4-16UNF | 7/8-14UN | 1.330 | 1.700 | 0.642 | 1.00 | 0.391 | 0.484 |
| 11 | 6801-10-08-NWO-FG | 0.875 | 7/8-14UNF | 3/4-16UNF | 1.450 | 1.540 | 0.743 | 0.86 | 0.484 | 0.391 |
| 12 | 6801-10-10-NWO-FG | 0.875 | 7/8-14UNF | 7/8-14UNF | 1.450 | 1.700 | 0.743 | 1.00 | 0.484 | 0.484 |
| 13 | 6801-10-12-NWO-FG | 1.062 | 7/8-14UNF | 1-1/16-12UN | 1.540 | 1.940 | 0.743 | 1.14 | 0.484 | 0.609 |
| 14 | 6801-12-10-NWO-FG | 1.062 | 1-1/16-12UN | 7/8-14UNF | 1.660 | 1.780 | 0.849 | 1.00 | 0.609 | 0.484 |
| 15 | 6801-12-12-NWO-FG | 1.062 | 1-1/16-12UN | 1-1/16-12UN | 1.660 | 1.940 | 0.849 | 1.14 | 0.609 | 0.609 |
| 16 | 6801-12-16-NWO-FG | 1.312 | 1-1/16-12UN | 1-5/16-12UN | 1.760 | 2.050 | 0.849 | 1.14 | 0.609 | 0.844 |
| 17 | 6801-16-12-NWO-FG | 1.312 | 1-5/16-12UN | 1-1/16-12UN | 1.810 | 2.050 | 0.896 | 1.14 | 0.844 | 0.609 |
| 18 | 6801-16-16-NWO-FG | 1.312 | 1-5/16-12UN | 1-5/16-12UN | 1.810 | 2.050 | 0.896 | 1.14 | 0.844 | 0.844 |
| 19 | 6801-16-20-NWO-FG | 1.625 | 1-5/16-12UN | 1-5/8-12UN | 2.010 | 2.250 | 0.896 | 1.14 | 0.844 | 1.078 |
| 20 | 6801-20-16-NWO-FG | 1.625 | 1-5/8-12UN | 1-5/16-12UN | 2.060 | 2.250 | 0.943 | 1.14 | 1.078 | 0.844 |
| 21 | 6801-20-20-NWO-FG | 1.625 | 1-5/8-12UN | 1-5/8-12UN | 2.060 | 2.250 | 0.943 | 1.14 | 1.078 | 1.078 |
| 22 | 6801-24-24-NWO-FG | 1.875 | 1-7/8-12UN | 1-7/8-12UN | 2.330 | 2.390 | 1.068 | 1.14 | 1.312 | 1.312 |
| 23 | 6801-32-24-NWO-FG | 2.500 | 2-1/2-12UN | 1-7/8-12UN | 3.060 | 2.890 | 1.318 | 1.14 | 1.781 | 1.312 |
| 24 | 6801-32-32-NWO-FG | 2.500 | 2-1/2-12UN | 2-1/2-12UN | 3.060 | 2.890 | 1.318 | 1.14 | 1.781 | 1.781 |
