J系列-6506
發(fā)布日期：2024-01-12 瀏覽次數(shù)：588

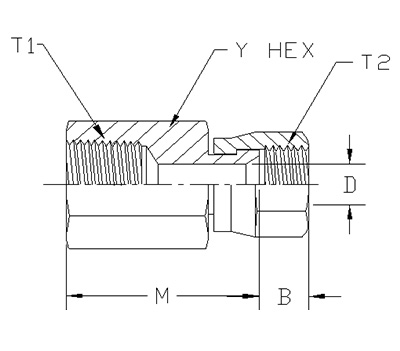

| ITEM | P/N | Y HEX | T1 | T2 | D | M |
| 1 | 6506-04-04-FG | 0.750 | 1/4-18NPTF | 7/16-20UNF | 0.172 | 1.17 |
| 2 | 6506-06-06-FG | 0.875 | 3/8-18NPTF | 9/16-18UNF | 0.297 | 1.31 |
| 3 | 6506-08-08-FG | 1.125 | 1/2-14NPTF | 3/4-16UNF | 0.391 | 1.59 |
| 4 | 6506-12-12-FG | 1.375 | 3/4-14NPTF | 1-1/16-12UN | 0.609 | 1.72 |
| 5 | 6506-16-16-FG | 1.625 | 1--11-1/2NPTF | 1-5/16-12UN | 0.844 | 2.02 |
