J系列-6500
發(fā)布日期：2024-01-12 瀏覽次數(shù)：566

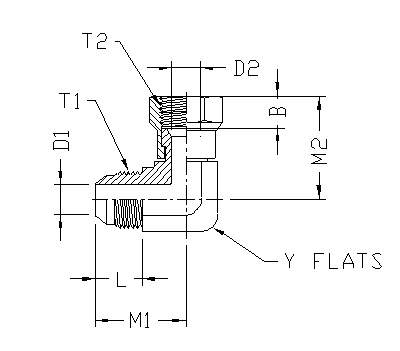

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | B | D2 |
| 1 | 6500-04-04-FG | 0.438 | 7/16-20UNF | 0.89 | 0.172 | 7/16-20UNF | 1 | 0.344 | 0.172 |
| 2 | 6500-06-06-FG | 0.562 | 9/16-18UNF | 1.06 | 0.297 | 9/16-18UNF | 1.25 | 0.375 | 0.297 |
| 3 | 6500-08-08-FG | 0.75 | 3/4-16UNF | 1.25 | 0.391 | 3/4-16UNF | 1.38 | 0.422 | 0.391 |
| 4 | 6500-10-10-FG | 0.875 | 7/8-14UN | 1.45 | 0.484 | 7/8-14UNF | 1.62 | 0.500 | 0.484 |
| 5 | 6500-12-12-FG | 1.062 | 1-1/16-12UN | 1.66 | 0.609 | 1-1/16-12UN | 1.75 | 0.562 | 0.609 |
| 6 | 6500-14-14-FG | 1.312 | 1-3/16-12 UN | 1.80 | 0.719 | 1-3/16-12 UN | 1.78 | 0.578 | 0.719 |
| 7 | 6500-16-16-FG | 1.312 | 1-5/16-12UN | 1.81 | 0.844 | 1-5/16-12UN | 2.00 | 0.594 | 0.844 |
| 8 | 6500-20-20-FG | 1.625 | 1-5/8-12UN | 2.06 | 1.078 | 1-5/8-12UN | 2.31 | 0.625 | 1.078 |
| 9 | 6500-24-24-FG | 1.875 | 1-7/8-12UN | 2.33 | 1.312 | 1-7/8-12UN | 2.59 | 0.734 | 1.312 |
| 10 | 6500-32-32-FG | 2.500 | 2-1/2-12UN | 3.06 | 1.781 | 2-1/2-12UN | 3.38 | 0.938 | 1.781 |
