J系列-2601

發(fā)布日期：2024-01-12 瀏覽次數(shù)：614

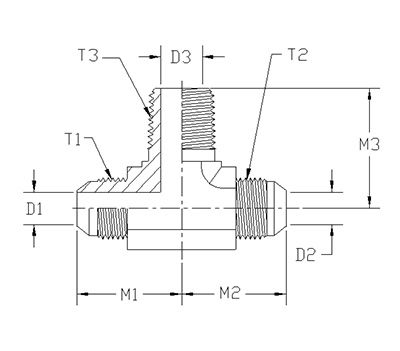

ITEM	P/N	Y HEX	T1	M1	D1	T2	M2	D2	T3	M3	D3
1	2601-03-03-02-FG	0.438	3/8-24UNF	0.83	0.125	3/8-24UNF	0.83	0.125	1/8-27NPTF	0.72	0.188
2	2601-04-04-02-FG	0.438	7/16-20UNF	0.89	0.172	7/16-20UNF	0.89	0.172	1/8-27NPTF	0.78	0.188
3	2601-04-04-04-FG	0.562	7/16-20UNF	1.05	0.172	7/16-20UNF	1.05	0.172	1/4-18NPTF	1.09	0.281
4	2601-04-04-06-FG	0.75	7/16-20UNF	1.12	0.172	7/16-20UNF	1.12	0.172	3/8-18NPTF	1.22	0.406
5	2601-05-05-02-FG	0.562	1/2-20UNF	0.95	0.234	1/2-20UNF	0.95	0.234	1/8-27NPTF	0.78	0.188
6	2601-05-05-04-FG	0.562	1/2-20UNF	1.05	0.234	1/2-20UNF	1.05	0.234	1/4-18NPTF	1.09	0.281
7	2601-06-06-04-FG	0.562	9/16-18UNF	1.06	0.297	9/16-18UNF	1.06	0.297	1/4-18NPTF	1.09	0.281
8	2601-06-06-06-FG	0.75	9/16-18UNF	1.14	0.297	9/16-18UNF	1.14	0.297	3/8-18NPTF	1.22	0.406
9	2601-06-06-08-FG	0.875	9/16-18UNF	1.22	0.297	9/16-18UNF	1.22	0.297	1/2-14NPTF	1.47	0.531
10	2601-08-08-06-FG	0.75	3/4-16UNF	1.25	0.391	3/4-16UNF	1.25	0.391	3/8-18NPTF	1.22	0.406
11	2601-08-08-08-FG	0.875	3/4-16UNF	1.33	0.391	3/4-16UNF	1.33	0.391	1/2-14NPTF	1.47	0.531
12	2601-10-10-06-FG	0.875	7/8-14UNF	1.45	0.484	7/8-14UNF	1.45	0.484	3/8-18NPTF	1.28	0.406
13	2601-10-10-08-FG	0.875	7/8-14UN	1.45	0.484	7/8-14UN	1.45	0.484	1/2-14NPTF	1.47	0.531
14	2601-12-12-08-FG	1.062	1-1/16-12UN	1.66	0.609	1-1/16-12UN	1.66	0.609	1/2-14NPTF	1.59	0.531
15	2601-12-12-12-FG	1.062	1-1/16-12UN	1.66	0.609	1-1/16-12UN	1.66	0.609	3/4-14NPTF	1.59	0.719
16	2601-14-14-12-FG	1.312	1-3/16-12UN	1.8	0.719	1-3/16-12UN	1.8	0.719	3/4-14NPTF	1.69	0.719
17	2601-16-16-12-FG	1.312	1-5/16-12UN	1.81	0.844	1-5/16-12UN	1.81	0.844	3/4-14NPTF	1.78	0.719
18	2601-16-16-16-FG	1.312	1-5/16-12UN	1.81	0.844	1-5/16-12UN	1.81	0.844	1-11-1/2NPTF	1.97	0.938
19	2601-20-20-20-FG	1.625	1-5/8-12UN	2.06	1.078	1-5/8-12UN	2.06	1.078	1-1/4-11-1/2NPTF	2.38	1.25
20	2601-32-32-32-FG	2.500	2-1/2-12 UN	3.06	1.781	2-1/2-12 UN	3.06	1.781	2-11-1/2 NPTF	3.00	1.938
