J系列-2501

發(fā)布日期：2024-01-12 瀏覽次數(shù)：541

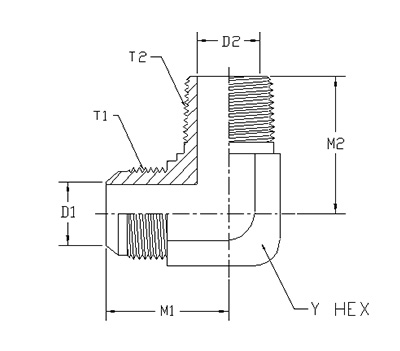

ITEM	P/N	Y HEX	T1	M1	D1	T2	M2	D2
1	2501-02-02-FG	0.438	5/16-24UNF	0.77	0.062	1/8-27NPTF	0.72	0.188
2	2501-03-02-FG	0.438	3/8-24UNF	0.83	0.125	1/8-27NPTF	0.72	0.188
3	2501-04-02-FG	0.438	7/16-20UNF	0.89	0.172	1/8-27NPTF	0.78	0.188
4	2501-04-04-FG	0.562	7/16-20UNF	1.05	0.172	1/4-18NPTF	1.09	0.281
5	2501-04-06-FG	0.75	7/16-20UNF	1.12	0.172	3/8-18NPTF	1.22	0.406
6	2501-04-08-FG	0.875	7/16-20UNF	1.21	0.172	1/2-14NPTF	1.47	0.531
7	2501-05-02-FG	0.562	1/2-20UNF	0.95	0.234	1/8-27NPTF	0.78	0.188
8	2501-05-04-FG	0.562	1/2-20UNF	1.05	0.234	1/4-18NPTF	1.09	0.281
9	2501-05-06-FG	0.75	1/2-20UNF	1.12	0.234	3/8-18NPTF	1.22	0.406
10	2501-05-08-FG	0.875	1/2-20UNF	1.21	0.234	1/2-14NPTF	1.47	0.531
11	2501-06-02-FG	0.562	9/16-18UNF	1.06	0.297	1/8-27NPTF	0.9	0.188
12	2501-06-04-FG	0.562	9/16-18UNF	1.06	0.297	1/4-18NPTF	1.09	0.281
13	2501-06-06-FG	0.75	9/16-18UNF	1.14	0.297	3/8-18NPTF	1.22	0.406
14	2501-06-08-FG	0.875	9/16-18UNF	1.22	0.297	1/2-14NPTF	1.47	0.531
15	2501-06-12-FG	1.062	9/16-18UNF	1.31	0.297	3/4-14NPTF	1.59	0.719
16	2501-08-02-FG	0.75	3/4-16UNF	1.25	0.391	1/8-27NPTF	1.03	0.188
17	2501-08-04-FG	0.75	3/4-16UNF	1.25	0.391	1/4-18NPTF	1.22	0.281
18	2501-08-06-FG	0.75	3/4-16UNF	1.25	0.391	3/8-18NPTF	1.22	0.406
19	2501-08-08-FG	0.875	3/4-16UNF	1.33	0.391	1/2-14NPTF	1.47	0.531
20	2501-08-12-FG	1.062	3/4-16UNF	1.42	0.391	3/4-14NPTF	1.59	0.719
21	2501-08-16-FG	1.312	3/4-16UNF	1.52	0.391	1-11-1/2NPTF	1.97	0.938
22	2501-10-06-FG	0.875	7/8-14UN	1.45	0.484	3/8-18NPTF	1.28	0.406
23	2501-10-08-FG	0.875	7/8-14UN	1.45	0.484	1/2-14NPTF	1.47	0.531
24	2501-10-12-FG	1.062	7/8-14UN	1.54	0.484	3/4-14NPTF	1.59	0.719
25	2501-10-16-FG	1.312	7/8-14UN	1.64	0.484	1-11-1/2NPTF	1.97	0.938
26	2501-12-06-FG	1.062	1-1/16-12UN	1.66	0.609	3/8-18NPTF	1.4	0.406
27	2501-12-08-FG	1.062	1-1/16-12UN	1.66	0.609	1/2-14NPTF	1.59	0.531
28	2501-12-12-FG	1.062	1-1/16-12UN	1.66	0.609	3/4-14NPTF	1.59	0.719
29	2501-12-16-FG	1.312	1-1/16-12UN	1.76	0.609	1-11-1/2 NPTF	1.97	0.938
30	2501-14-12-FG	1.312	1-3/16-12UN	1.8	0.719	3/4-14NPTF	1.69	0.719
31	2501-16-08-FG	1.312	1-5/16-12UN	1.81	0.844	1/2-14NPTF	1.78	0.531
32	2501-16-12-FG	1.312	1-5/16-12UN	1.81	0.844	3/4-14NPTF	1.78	0.719
33	2501-16-16-FG	1.312	1-5/16-12UN	1.81	0.844	1-11-1/2 NPTF	1.97	0.938
34	2501-16-20-FG	1.625	1-5/16-12UN	2.01	0.844	1-1/4-11-1/2NPTF	2.38	1.25
35	2501-16-24-FG	1.875	1-5/16-12UN	2.16	0.844	1-1/2-11-12NPTF	2.64	1.5
36	2501-20-16-FG	1.625	1-5/8-12UN	2.06	1.078	1-11-1/2NPTF	2.35	0.938
37	2501-20-20-FG	1.625	1-5/8-12UN	2.06	1.078	1-1/4-11-1/2NPTF	2.38	1.250
38	2501-20-24-FG	1.875	1-5/8-12UN	2.2	1.078	1-1/2-11-12NPTF	2.64	1.5
39	2501-24-16-FG	1.875	1-7/8-12UN	2.33	1.312	1-11-1/2NPTF	2.58	0.938
40	2501-24-20-FG	1.875	1-7/8-12UN	2.33	1.312	1-1/4-11-1/2NPTF	2.61	1.25
41	2501-24-24-FG	1.875	1-7/8-12UN	2.33	1.312	1-1/2-11-1/2NPTF	2.64	1.5
42	2501-32-24-FG	2.5	2-1/2-12UN	3.06	1.781	1-1/2-11-1/2NPTF	2.97	1.5
43	2501-32-32-FG	2.5	2-1/2-12UN	3.06	1.781	2-11-1/2NPTF	3	1.938
