J系列-2406
發(fā)布日期：2024-01-12 瀏覽次數(shù)：632

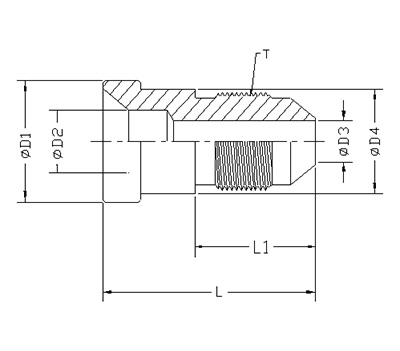

| ITEM | P/N | T | D1 | D2 | D3 | D4 | L1 | L |
| 1 | 2406-06-04 | 7/16-20 UNF | 12.75 | 4.40 | 4.40 | 10.97 | 14.00 | 24.6 |
| 2 | 2406-08-04 | 7/16-20 UNF | 17.32 | 9.93 | 4.37 | 14.27 | 13.97 | 25.4 |
| 3 | 2406-08-06 | 9/16-18 UNF | 17.32 | 7.54 | 7.54 | 14.27 | 14.12 | 25.4 |
| 4 | 2406-10-04 | 7/16-20 UNF | 20.24 | 4.40 | 4.40 | 17.53 | 14.00 | 26.2 |
| 5 | 2406-12-06 | 9/16-18 UNF | 24.69 | 15.50 | 7.54 | 20.98 | 14.12 | 27.7 |
| 6 | 2406-12-08 | 3/4-16 UNF | 24.69 | 9.90 | 9.90 | 20.98 | 16.69 | 30.2 |
| 7 | 2406-16-12 | 1 1/16-12 UN | 31.04 | 15.50 | 15.50 | 27.46 | 21.95 | 37.3 |
