F系列-FS6850

發(fā)布日期：2024-01-12 瀏覽次數(shù)：549

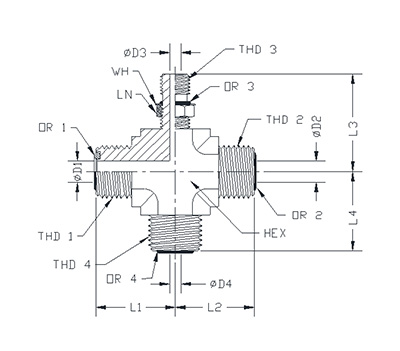

Unit: inch
ITEM P/N HEX THD 1 THD 2 THD 3 THD 4 L1 L2 L3 L4 D1 D2 D3 D4 OR 1 OR 2 OR 4 LN WH OR 3
1 FS6850-04-04-04-04-04NWO-FG 0.562 9/16-18 UNF 9/16-18 UNF 7/16-20 UNF 9/16-18 UNF 0.85 0.85 1.29 0.85 0.172 0.172 0.172 0.172 OG-04 OG-04 OG-04 LNF-04 WHE-04 OE-04
2 FS6850-06-06-06-06-06-NWO-FG 0.750 11/16-16 UNF 11/16-16 UNF 9/16-18 UNF 11/16-16 UNF 0.98 0.98 1.45 0.98 0.264 0.264 0.264 0.264 OG-06 OG-06 OG-06 LNF-06 WHE-06 OE-06
3 FS6850-08-08-08-08-08-NWO-FG 0.750 13/16-16 UNF 13/16-16 UNF 3/4-16 UNF 13/16-16 UNF 1.10 1.10 1.60 1.10 0.378 0.378 0.378 0.378 OG-08 OG-08 OG-08 LNF-08 WHE-08 OE-08
4 FS6850-10-10-10-10-10-NWO-FG 1.062 1-14 UNS 1-14 UNS 7/8-14 UNF 1-14 UNS 1.31 1.31 1.97 1.31 0.484 0.484 0.484 0.484 OG-10 OG-10 OG-10 LNF-10 WHE-10 OE-10
5 FS6850-12-12-12-12-12-NWO-FG 1.188 1-3/16-12 UN 1-3/16-12 UN 1-1/16-12 UN 1-3/16-12 UN 1.47 1.47 2.17 1.47 0.609 0.609 0.609 0.609 OG-12 OG-12 OG-12 LNF-12 WHE-12 OE-12
6 FS6850-16-16-16-16-16-NWO-FG 1.438 1-7/16-12 UN 1-7/16-12 UN 1-5/16-12 UN 1-7/16-12 UN 1.64 1.64 2.35 1.64 0.811 0.811 0.811 0.811 OG-16 OG-16 OG-16 LNF-16 WHE-16 OE-16
