F系列-FS6504

發(fā)布日期：2024-01-12 瀏覽次數(shù)：551

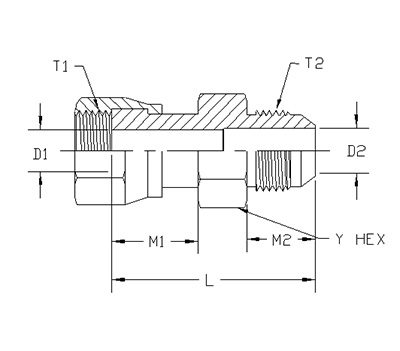

ITEM P/N Y HEX T1 T2 L1 L2 D1 D2
1 FS6504-04-04-FG 0.625 9/16-18UNF 7/16-20UNF 0.7 0.433 0.172 0.172
2 FS6504-04-06-FG 0.750 9/16-18UNF 9/16-18UNF 0.73 0.472 0.172 0.172
3 FS6504-06-04-FG 0.750 11/16-16UNF 7/16-20UNF 0.91 0.433 0.172 0.172
4 FS6504-06-06-FG 0.750 11/16-16UNF 9/16-18UNF 0.78 0.472 0.264 0.264
5 FS6504-06-08-FG 0.875 11/16-16UNF 3/4-16UNF 0.83 0.551 0.264 0.264
6 FS6504-06-10-FG 1.062 11/16-16UNF 7/8-14UNF 0.9 0.63 0.264 0.484
7 FS6504-08-06-FG 0.875 13/16-16UNF 9/16-18UNF 1 0.472 0.264 0.264
8 FS6504-08-08-FG 0.875 13/16-16UNF 3/4-16UNF 0.89 0.551 0.378 0.378
9 FS6504-08-10-FG 1.062 13/16-16UNF 7/8-14UNF 0.96 0.63 0.378 0.378
10 FS6504-10-06-FG 1.062 1-14UNS 9/16-18UNF 1.17 0.472 0.484 0.264
11 FS6504-10-08-FG 1.062 1-14UNS 3/4-16UNF 1.23 0.551 0.378 0.378
12 FS6504-10-10-FG 1.062 1-14UNS 7/8-14UNF 1.07 0.63 0.484 0.484
13 FS6504-10-12-FG 1.25 1-14UNS 1-1/16-12UN 1.13 0.728 0.484 0.484
14 FS6504-12-12-FG 1.25 1-3/16-12UN 1-1/16-12UN 1.19 0.728 0.609 0.609
15 FS6504-12-16-FG 1.5 1-3/16-12UN 1-5/16-12UN 1.23 0.728 0.609 0.609
16 FS6504-16-12-FG 1.5 1-7/16-12UN 1-1/16-12UN 1.41 0.728 0.811 0.609
17 FS6504-16-16-FG 1.5 1-7/16-12UN 1-5/16-12UN 1.25 0.728 0.811 0.811
18 FS6504-20-16-FG 1.875 1-11/16-12UN 1-5/16-12UN 1.55 0.728 0.811 0.811
19 FS6504-20-20-FG 1.875 1-11/16-12UN 1-5/8-12UN 1.33 0.728 1.024 1.024
20 FS6504-24-24-FG 2.125 2-12UN 1-7/8-12UN 1.4 0.728 1.260 1.260
