F系列-FS6400

發(fā)布日期：2024-01-12 瀏覽次數(shù)：639

Unit: inch

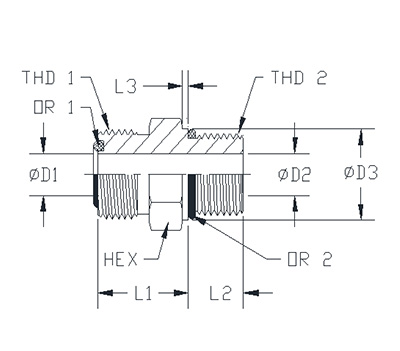

ITEM	P/N	HEX	THD 1	THD 2	L1	L2	L3	D1	D2	D3	OR 1	OR 2
1	FS6400-04-04-O	0.625	9/16-18 UNF	7/16-20 UNF	0.70	0.433	-	0.172	0.172	-	OG-04	OE-04
2	FS6400-04-06-O	0.750	9/16-18 UNF	9/16-18 UNF	0.73	0.472	-	0.172	0.264	-	OG-04	OE-06
3	FS6400-06-04-O	0.750	11/16-16 UNF	7/16-20 UNF	0.91	0.433	0.16	0.264	0.172	0.63	OG-06	OE-04
4	FS6400-06-06-O	0.750	11/16-16 UNF	9/16-18 UNF	0.78	0.472	-	0.264	0.264	-	OG-06	OE-06
5	FS6400-06-08-O	0.875	11/16-16 UNF	3/4-16 UNF	0.83	0.551	-	0.264	0.378	-	OG-06	OE-08
6	FS6400-06-10-O	1.062	11/16-16 UNF	7/8-14 UNF	0.90	0.630	-	0.264	0.484	-	OG-06	OE-10
7	FS6400-06-12-O	1.250	11/16-16 UNF	1 1/16-12 UN	0.96	0.728	-	0.264	0.609	-	OG-06	OE-12
8	FS6400-08-06-O	0.875	13/16-16 UNF	9/16-18 UNF	1.00	0.472	0.16	0.378	0.264	0.75	OG-08	OE-06
9	FS6400-08-08-O	0.875	13/16-16 UNF	3/4-16 UNF	0.89	0.551	-	0.378	0.378	-	OG-08	OE-08
10	FS6400-08-10-O	1.062	13/16-16 UNF	7/8-14 UNF	0.96	0.630	-	0.378	0.484	-	OG-08	OE-10
11	FS6400-08-12-O	1.250	13/16-16 UNF	1 1/16-12 UN	1.02	0.728	-	0.378	0.609	-	OG-08	OE-12
12	FS6400-08-16-O	1.500	13/16-16 UNF	1-5/16-12UN	1.06	0.728	-	0.378	0.811	-	OG-08	OE-16
13	FS6400-10-06-O	1.062	1-14UNS	9/16-18 UNF	1.17	0.472	0.16	0.484	0.264	0.75	OG-10	OE-06
14	FS6400-10-08-O	1.062	1-14UNS	3/4-16 UNF	1.23	0.551	0.22	0.484	0.378	0.94	OG-10	OE-08
15	FS6400-10-10-O	1.062	1-14UNS	7/8-14 UNF	1.07	0.630	-	0.484	0.484	-	OG-10	OE-10
16	FS6400-10-12-O	1.250	1-14UNS	1-1/16-12UN	1.13	0.728	-	0.484	0.609	-	OG-10	OE-12
17	FS6400-12-08-O	1.250	1-3/16-12UN	3/4-16 UNF	1.36	0.551	0.22	0.609	0.378	0.94	OG-12	OE-08
18	FS6400-12-10-O	1.250	1-3/16-12UN	7/8-14 UNF	1.36	0.630	0.22	0.609	0.484	1.06	OG-12	OE-10
19	FS6400-12-12-O	1.250	1-3/16-12UN	1-1/16-12UN	1.19	0.728	-	0.609	0.609	-	OG-12	OE-12
20	FS6400-12-16-O	1.500	1-3/16-12UN	1-5/16-12UN	1.23	0.728	-	0.609	0.811	-	OG-12	OE-16
21	FS6400-16-12-O	1.500	1-7/16-12 UN	1-1/16-12UN	1.41	0.728	0.22	0.811	0.609	1.31	OG-16	OE-12
22	FS6400-16-16-O	1.500	1-7/16-12 UN	1 5/16-12 UN	1.25	0.728	-	0.811	0.811	-	OG-16	OE-16
23	FS6400-16-20-O	1.875	1-7/16-12 UN	1 5/8-12 UN	1.33	0.728	-	0.811	1.024	-	OG-16	OE-20
24	FS6400-20-16-O	1.875	1-11/16-12 UN	1 5/16-12 UN	1.55	0.728	0.28	1.024	0.811	1.56	OG-20	OE-16
25	FS6400-20-20-O	1.875	1-11/16-12 UN	1 5/8-12 UN	1.33	0.728	-	1.024	1.024	-	OG-20	OE-20
26	FS6400-24-24-O	2.125	2-12 UN	1 7/8-12 UN	1.40	0.728	-	1.26	1.26	-	OG-24	OE-24
