F系列-FS2501

發(fā)布日期：2024-01-12 瀏覽次數(shù)：600

Unit: inch

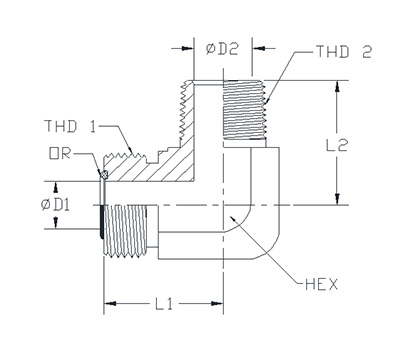

ITEM	P/N	HEX	THD 1	THD 2	L1	L2	D1	D2	OR
1	FS2501-04-02-FG	0.562	9/16-18 UNF	1/8-27 NPTF	0.85	0.80	0.172	0.188	OG-04
2	FS2501-04-04-FG	0.562	9/16-18 UNF	1/4-18 NPTF	0.85	1.12	0.172	0.281	OG-04
3	FS2501-04-06-FG	0.750	9/16-18 UNF	3/8-16 NPTF	0.97	1.22	0.172	0.406	OG-04
4	FS2501-04-08-FG	0.875	9/16-18 UNF	1/2-14 NPTF	1.05	1.47	0.172	0.531	OG-04
5	FS2501-06-02-FG	0.750	11/16-16 UNF	1/8-27 NPTF	0.98	0.94	0.264	0.188	OG-06
6	FS2501-06-04-FG	0.750	11/16-16 UNF	1/4-18 NPTF	0.98	1.22	0.264	0.281	OG-06
7	FS2501-06-06-FG	0.750	11/16-16 UNF	3/8-16 NPTF	0.98	1.22	0.264	0.406	OG-06
8	FS2501-06-08-FG	0.875	11/16-16 UNF	1/2-14 NPTF	1.15	1.47	0.264	0.531	OG-06
9	FS2501-08-04-FG	0.750	13/16-16 UNF	1/4-18 NPTF	1.10	1.22	0.378	0.281	OG-08
10	FS2501-08-06-FG	0.750	13/16-16 UNF	3/8-16 NPTF	1.10	1.22	0.378	0.406	OG-08
11	FS2501-08-08-FG	0.875	13/16-16 UNF	1/2-14 NPTF	1.10	1.47	0.378	0.531	OG-08
12	FS2501-08-12-FG	1.062	13/16-16 UNF	3/4-14 NPTF	1.32	1.59	0.378	0.719	OG-08
13	FS2501-10-08-FG	1.062	1-14 UNS	1/2-14 NPTF	1.31	1.47	0.484	0.531	OG-10
14	FS2501-10-12-FG	1.062	1-14 UNS	3/4-14 NPTF	1.31	1.59	0.484	0.719	OG-10
15	FS2501-10-16-FG	1.312	1-14 UNS	1-11.5 NPTF	1.56	1.97	0.484	0.938	OG-10
16	FS2501-12-08-FG	1.188	1-3/16-12 UN	1/2-14 NPTF	1.47	1.59	0.609	0.531	OG-12
17	FS2501-12-12-FG	1.188	1-3/16-12 UN	3/4-14 NPTF	1.47	1.59	0.609	0.719	OG-12
18	FS2501-12-16-FG	1.312	1-3/16-12 UN	1-11.5 NPTF	1.62	1.97	0.609	0.938	OG-12
19	FS2501-16-12-FG	1.438	1-7/16-12 UN	3/4-14 NPTF	1.64	1.78	0.811	0.719	OG-16
20	FS2501-16-16-FG	1.438	1-7/16-12 UN	1-11.5 NPTF	1.64	1.97	0.811	0.938	OG-16
21	FS2501-20-16-FG	1.625	1-11/16-12 UN	1-11.5 NPTF	1.76	2.35	1.024	0.938	OG-20
22	FS2501-20-20-FG	1.625	1-11/16-12 UN	1 1/4-11.5 NPTF	1.76	2.38	1.024	1.250	OG-20
23	FS2501-24-24-FG	1.875	2-12 UN	1 1/2-11.5 NPTF	1.92	2.64	1.260	1.500	OG-24
